 Wir entwickeln für Sie die unterschiedlichsten Varianten aus dem Fundus unserer Standardgeräte, passend für Ihren Einsatzfall.
 Oder auch etwas ganz Neues (Analoges), falls Sie auf dem Markt bisher nicht fündig geworden sind.
 Ausgenommen sind: Leistungselektronik, Hochfrequenzapplikationen.
 Unsere Möglichkeiten zur Erstellung Ihrer spezifischen Geräte sind:

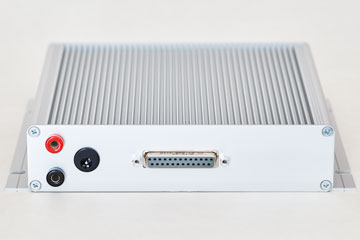

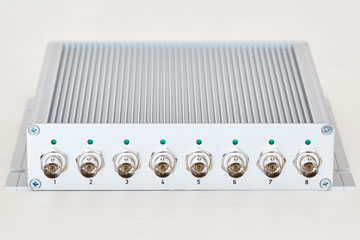

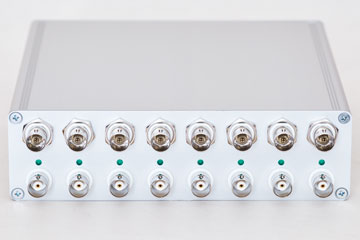

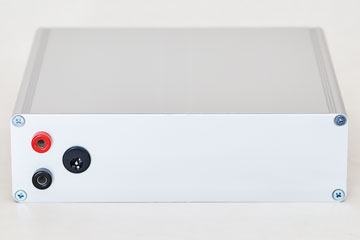

  • Gehäuse und Grundplatinen: Montage unserer Module (Frontplatten- oder Platinenmontageversion) in unterschiedliche Gehäuse für
    einsatzbereite Mehrkanalgeräte einschliesslich der passenden Netzteile
  • Änderung von Bauteilewerten
  • Mechanischen Anpassungen mit Modifikation des Platinen-Layouts
  • Neuentwicklung von Schaltungsteilen
  • Entwicklung komplett neuer Lösungen.
 We develop for you the most diverse variants from the stock of our standard devices, suitable for your application.
 Or something completely new (analogous), if you have not found anything on the market yet.
 Excluded are: power electronics, high-frequency applications.
 The adjustments to your needs range from
  • Enclosures and main boards: mounting of our modules (front panel or board mounting version) into different enclosures for ready to
     use multi-channel units including the matching power supplies
  • Change of component values
  • Mechanical adjustments with PCB layout modification
  • New development of circuit parts
  • Development of completely new solutions.
 NEW PRODUCTS
 UNDER
 CONSTRUCTION

PRECISION ISOLATION AMPLIFIER Precision isolation Amp
 And what simmers in our laboratory kitchen?
 Precision measuring amplifier with
 1. complete galvanic isolation between:
     • Signal Input to Signal Output
     • external power supply to internal power supply input / output
 2. Input matching to DC, AC and IEPE (ICP) signals with
     IEPE-Exitation 4mA/24VDC
 3. Input amplifier with gain 1 - 2 - 5 - 10 [V/V]
     for signals 0 to ±10V - ±5V - ±2.5V - ±1V
 4. Bandwidth 0 to 30kHz (limited by active filter 4th order)
     (bandwidth IEPE: 0.5Hz to 30kHz)
 5. Output configuration for
     • 0 to ±10V, ±5V
     • 0 to +5V (with Offset +2.5V)
     • 0 to +3.3V (with Offset +1.65V)
 All settings via jumper - completely software free.
 What is not yet certain: mechanical design
 (Aluminum module housing, 35mm DIN rail mounting, etc.).
 ICP® reg. trademark PCB Group Inc.
 More information on request.  Please specify in your enquiry mail the product or the service you are interested in.
